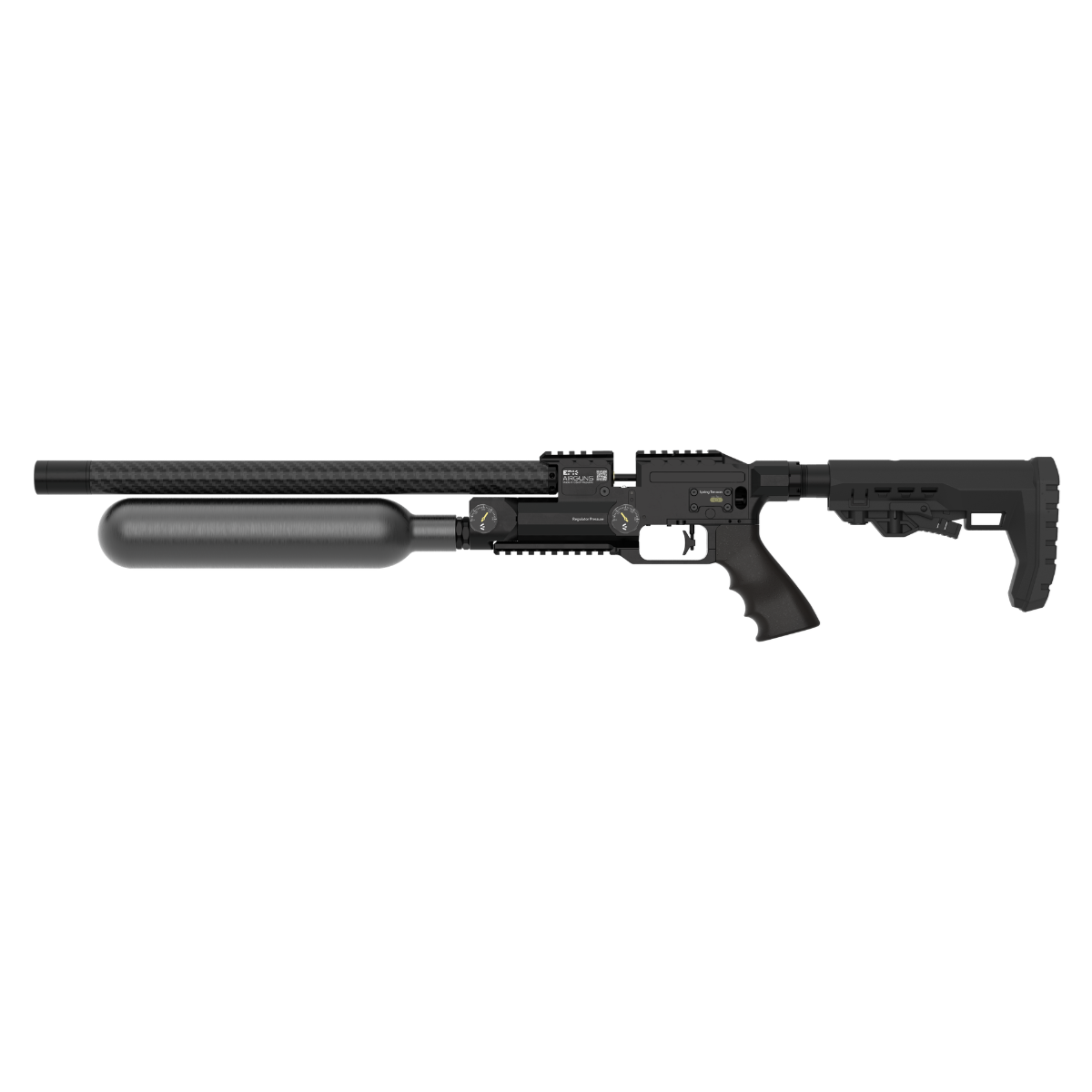

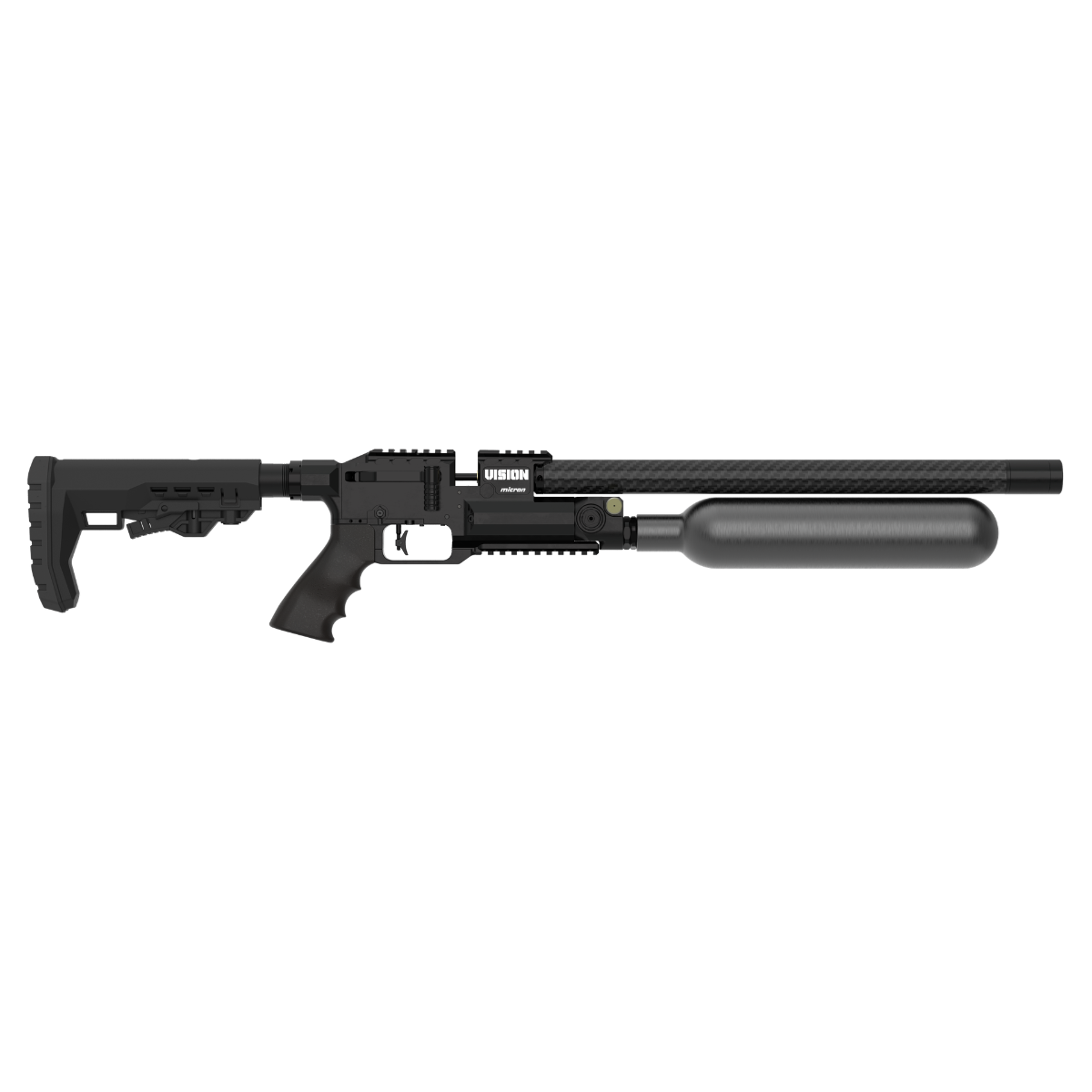

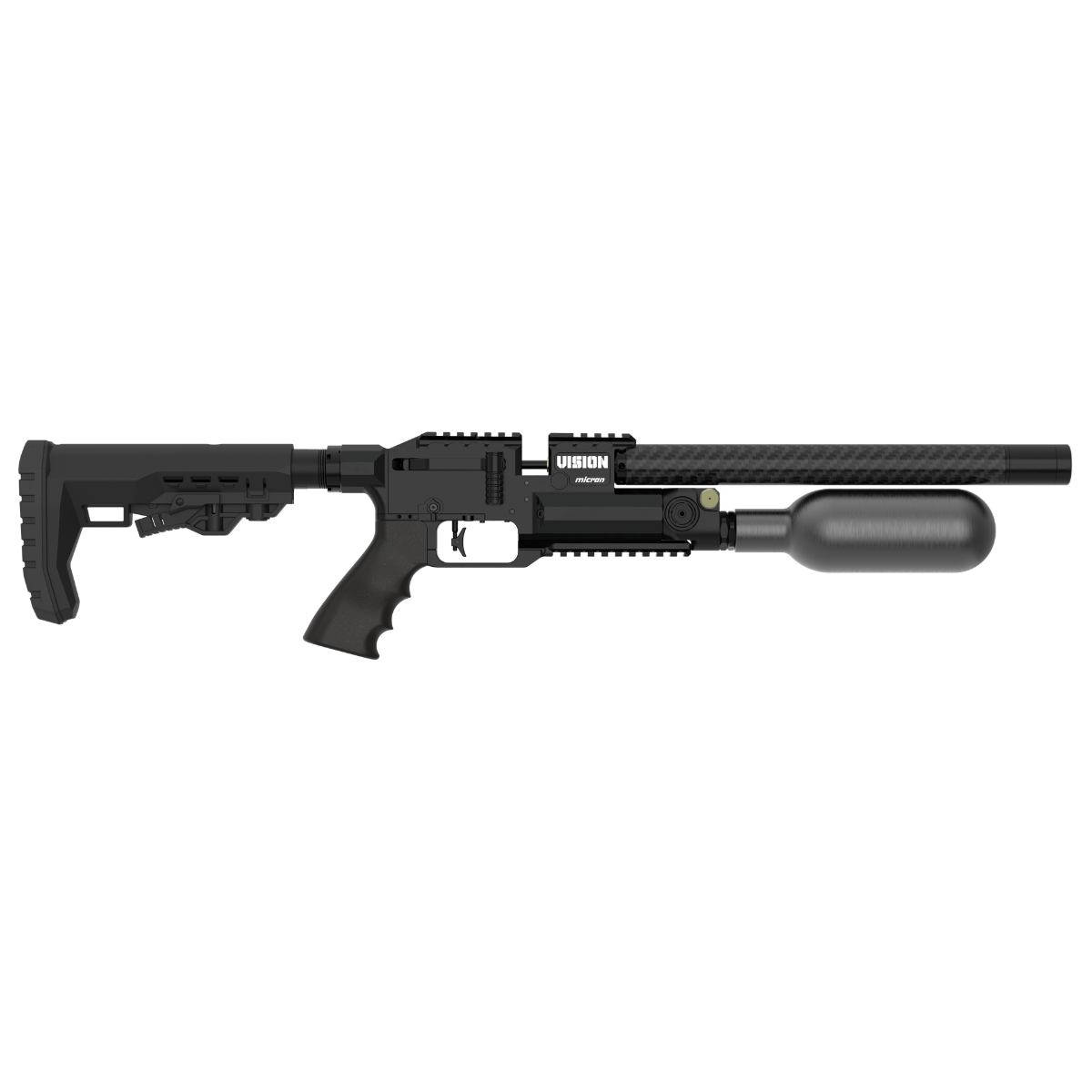

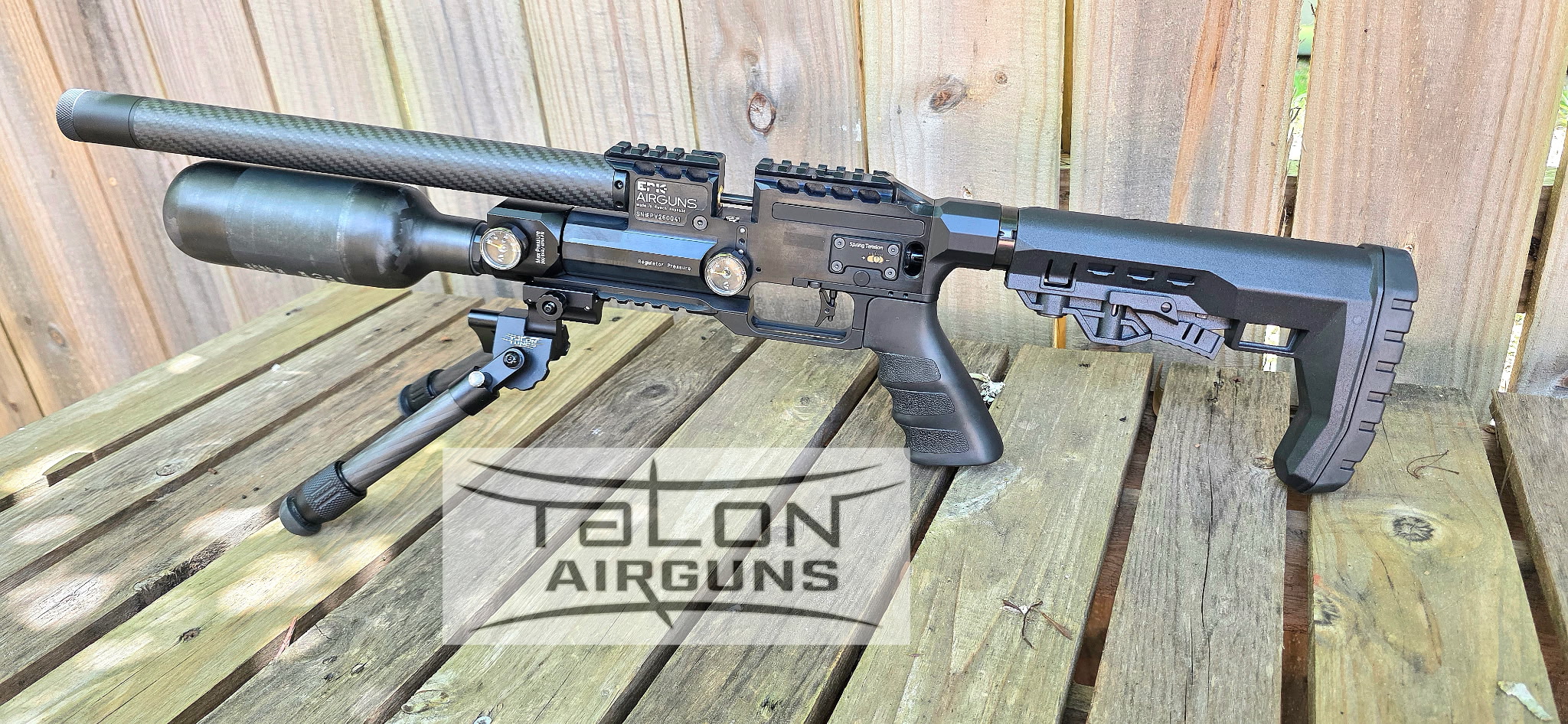

Epic Airguns Vision Bottle Airgun

Precision Without Compromise: The Vision Core

The Vision platform from Epic Airguns was developed through direct feedback from high-level field shooters who required measurable gains in consistency, tunability, and ergonomics. The result is a mechanically refined system centered around the High-Power Assisted Valve architecture.

This valve design minimizes hammer-spring sensitivity by promoting efficient valve actuation across varying tension settings. In practical terms, that translates to:

• Reduced velocity fluctuation across the fill range

• Stable dwell characteristics

• Improved regulator synchronization

• Consistent point-of-impact retention under environmental shifts

For shooters operating at extended ranges, reduced extreme spread is not optional—it is foundational.

---

Tailored for the Modern Marksman

The Vision Bottle Edition embraces full modularity rather than fixed configuration. Interchangeable barrels and caliber conversions allow the platform to scale from efficient pellet setups to high-energy slug configurations without replacing the core chassis.

Equipped with a non-choked CZUB barrel manufactured by Česká zbrojovka Uherský Brod, the system features:

• 12-groove rifling

• 17.7″ twist rate

• 17.7-inch (approx. 450mm) class barrel configuration (model dependent)

The non-choked geometry is specifically optimized to stabilize both heavier pellets and modern high-BC slugs, providing versatility for field competition and precision hunting applications.

---

Elite Ergonomics & Tactical DNA

AR-15 Integration

The platform ships with a Mil-Spec adjustable AR-15 pattern stock and a manual safety selector, delivering familiar control geometry and rugged adaptability. Grip and stock compatibility allow shooters to configure length of pull and interface geometry to match positional or field shooting styles.

30 MOA Integrated Optics Rail

The built-in 30 MOA canted top rail preserves internal scope adjustment for long-range engagements. With proper ballistic tuning, the system comfortably supports 100+ yard shooting without exhausting turret elevation.

External Tuning Architecture

An externally adjustable regulator and clearly indexed hammer-spring adjustment system allow rapid pressure optimization in the field—no teardown, no specialty tools, and no guesswork.

Ambidextrous Operation

A fully reversible side-lever cocking mechanism ensures identical mechanical performance for both right- and left-handed shooters, maintaining uniform cycling and shot cadence regardless of dominant side.
